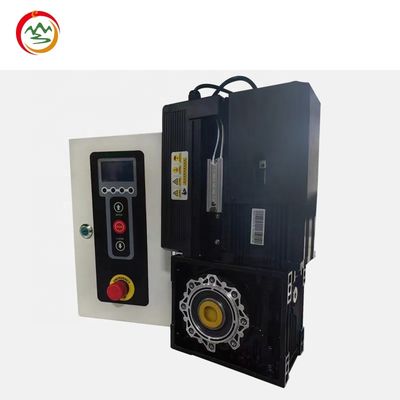

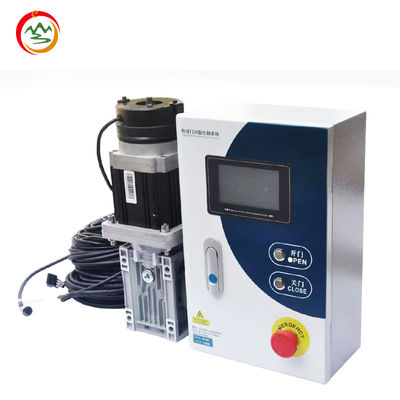

Factory Direct 220V PVC High-Speed Door Zipper Automatic Repair Workshop Flexible Door Opener with Fast Motor Modern Design

Name: Factory Direct 220V PVC High-Speed Door Zipper Automatic Repair Workshop Flexible Door Opener with Fast Motor Modern Design
Brand: Hubei Huanshan Intelligent Technology Co., Ltd.
Availability: InStock

Large Image : Factory Direct 220V PVC High-Speed Door Zipper Automatic Repair Workshop Flexible Door Opener with Fast Motor Modern Design

Product Details:

Contact Now

Detailed Product Description

Warranty:	1 Year	After-sale Service:	Online Technical Support
Project Solution Capability:	Total Solution For Projects, Others	Application:	Workshop
Design Style:	Modern	Place Of Origin:	Hubei, China
Brand Name:	Baojiu	Model Number:	A1
Type:	Motor	Product Name:	High Speed Door Motor
Model:	A1-PE200B	Motor Output Rating Power:	0.75kw
Motor Input Power Voltage:	Single Phase AC200-240V	Motor Input Power Frequency:	50/60Hz
Rated Speed Of Motor Output:	3000RPM	Motor Input Current:	6.5A
Motor Operating Temperature:	-10~+40℃	Motor Self-locking Method:	Electronic Mechanical Brake
Protection Grade:	IP42

Products Description

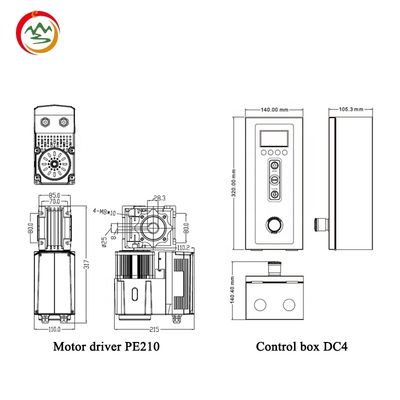

1. Motor driver specifications and parameters

Model	A1-PE210
Size (length x width x height)	317 x 110 x 215mm
Output Rating Power	0.75kw、1.5kw
Output rated speed	3000RPM
Output rated torque	2.39Nm
Input power voltage	Single phase AC200-240V
Input power frequency	50/60Hz
Input Current	6.5A
operation temperature	-10~+40 ˚C
storage temperature	-25~+55 ˚C
Ambient humidity	30%-85%，
Protection grade	IP42
Limit mode	Absolute value encoder
Self-locking method	Electronic mechanical brake
Manual release	handle
Net weight	8KG (equipped with RV50 reducer)

2. Controller specifications and parameters

Model	A1-DC4
Box material	Cold rolled steel plate
Size (length x width x height)	320x140x105mm (140mm) (including emergency stop)
Installation method	Vertical installation without vibration
Input power voltage	Single phase AC200-240V
Input power frequency	50/60Hz
Maximum output power	1.5kw
Power supply capability for external devices	24VDC
Power supply capability for external devices		0.4A
operation temperature	-10~+50 ˚C
storage temperature	-25~+55 ˚C
Ambient humidity	30%-85%，
Place of use	Indoor, free from direct sunlight, dust, corrosive gases, oil mist, and water vapor etc.
Weight (net weight)	1.6KG

Product details

Company Profile

Why Choose Us

packing shipping and payment

FAQ

1. How can I buy the motors? If you want to purchase a high-speed door motor, we need to know the local voltage in your country and the area of your door opening so that we can recommend a more suitable motor.. 2. What's our payment terms? T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me. 3. What's the delivery time? Within 7-20 days after we confirm you requirement. 4.I can't install the door motor. No worries, it's very easy, we have installation vedio, manual books and technician on line supports. please contact sales for the service. 5. I never imported from China. No worries. Our sales are rich experience, they will help you with imported step by step. Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
