Industrial Design Style Wind-Resistant Quick Stacking Door for Garbage Station PVC Dustproof by Manufacturer

Name: Industrial Design Style Wind-Resistant Quick Stacking Door for Garbage Station PVC Dustproof by Manufacturer
Brand: Hubei Huanshan Intelligent Technology Co., Ltd.
Availability: InStock

Large Image : Industrial Design Style Wind-Resistant Quick Stacking Door for Garbage Station PVC Dustproof by Manufacturer

Product Details:

Contact Now

Detailed Product Description

Place Of Origin:	China	Brand Name:	HS
Model Number:	003	Door Material:	Pvc
Warranty:	1 Year	Material:	PVC
Feature:	Windproof	Surface Finishing:	Finished
Opening Method:	Foldable	After-sale Service:	Online Technical Support
Main Material:	PVC	Project Solution Capability:	Total Solution For Projects
Application:	Warehouse	Design Style:	Industrial
Product Name:	High Speed Stacking Door	Color:	Customized Color
Size:	Customized Size	Opening Direction:	Vertical Stacking Lifting
Usage:	Large Size Door	Wind Resistant:	Strong
Hardware:	Electric Motor, Infrared, Track, Hardware, Etc	Advantage:	Rapid And Stable And Easy Operation
Position:	Industrial	Packing:	Plywood Package

Details Images

Products Description

Main materials or configurations	Specification and model	Specifications or configuration instructions
Flexible door packaging box dimensions	Width 360 * Height 530	Integrated door cover and frame. Baosteel cold-rolled sheet, 1.5mm thick, specially coated with fluorocarbon powder for outdoor use, with professional anti-oxidation treatment on the surface
Flexible stacking door PVC thickness	300300600	Integrated door cover and frame. Baosteel cold-rolled sheet, 1.5mm thick, specially coated with fluorocarbon powder for outdoor use, with professional anti-oxidation treatment on the surface

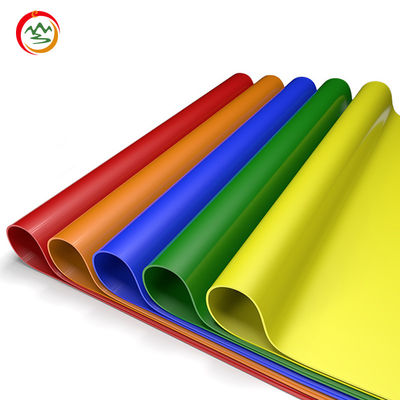

Flexible stacking door PVC thickness	1.0mm thick	PVC double-layer coating base fabric with a thickness of 0.9mm and high wear resistance coefficient; The fire rating is NF-P92-503 standard, with colors available in blue, white, gray, orange, light blue, yellow, fully transparent, yellow grid, and white grid Between -30 ℃ and 70 ℃.
Installation position	It needs to occupy 1500mm above the opening; On both sides, the side of the motor and control box is 750mm, and the side without the motor is 400mm
Safety	Otonix photoelectric, infrared safety protection photoelectric, installed on both sides of the door frame, ensures that when there is an object below the door body, the door remains open and automatically closes after passing.
Switch Mode	According to the customer's on-site selection: radar, geomagnetic, remote control, rope pulling, card swiping, etc., standard button control box

widely used in large equipment manufacturing industries such as airport freight, shipyards, power plants, coal enterprises, heavy industry enterprises, etc., and large-scale entrances and exits are required to be closed.

The single door can be manufactured in specifications: 6-60 meters high and 8-140 meters wide. Wind resistance rating: standard wind pressure 55kg/square. The maximum design wind pressure is 77kg/square. Ascent speed: minimum 6 m/min (adjustable). Strong wind resistance, good sealing and heat preservation, working temperature between -30℃-70℃.

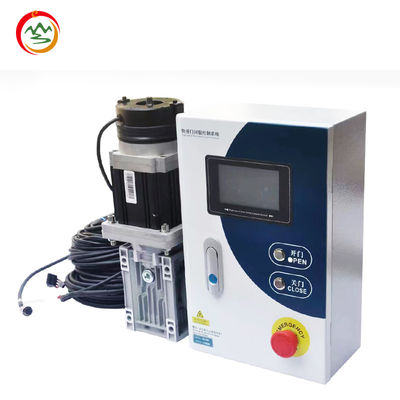

The control system adopts special motor and special PLC and frequency converter control. The vertical lifting and folding storage of the strap save more three-dimensional space for the entrance and exit, enhance the passability, the appearance is beautiful and firm, and under harsh environmental conditions. It also has good sealing performance when the wind pressure reaches 35m/s. The sealed brush can prevent wind and reduce noise.

Product details

Company Profile

Why Choose Us

packing shipping and payment

FAQ

1. How can I buy the doors? If you want buy PVC stracking fast door, we need know your door open size, than contact us for doors drawing and price. 2. What's our payment terms? T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me. 3. What's the delivery time? Within 15-35 days after we confirm you requirement. 4.I can't install the doors. No worries, it's very easy, we have installation vedio, manual books and technician on line supports. If need we go to the work site to installation, please contact sales for the service. 5. I never imported from China. No worries. Our sales are rich experience, they will help you with imported step by step. Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
