Modern Steel Sectional Garage Doors Overhead Insulated Flap Sliding Garage Door Prices

Name: Modern Steel Sectional Garage Doors Overhead Insulated Flap Sliding Garage Door Prices
Brand: Hubei Huanshan Intelligent Technology Co., Ltd.
Availability: InStock

Large Image : Modern Steel Sectional Garage Doors Overhead Insulated Flap Sliding Garage Door Prices

Product Details:

Contact Now

Detailed Product Description

Place Of Origin:	China	Brand Name:	Hbhs
Door Material:	Steel	Warranty:	1 Year
Feature:	Windproof, Hear Insukation, High Safety	Surface Finishing:	Finished
Opening Method:	Electric Side Opening	Door Type:	Polymer
After-sale Service:	Online Technical Support	Main Material:	Polymer
Project Solution Capability:	Graphic Design	Application:	Hotel, Garage, Warehouse, Factory
Design Style:	Modern	Product Name:	Sectional Industrial Door
Material:	Galvanize Steel, Aluminum, Stainless Steel	Color:	Details Page

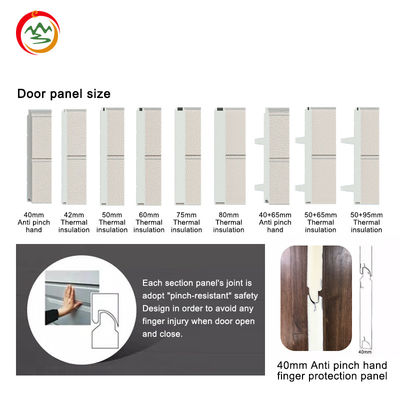

Panel Thickness:	40mm,42mm,50mm,60mm,75mm,80mm,40+65mm,50+65mm,50+95mm	Height:	435mm, 485mm, 535mm
Width:	Maximum 6500mm	Control:	Automatic With Remote Cotroled
Handware:	With All Handware	Open Style:	Automatic

Products Description

Material options	1. 304 STAINLESS STEEL 0.3mm or 0.4mm 2. Aluminum material door panel with polyethene foam filled 3. Galvanized steel plate, with any ral color
Door panel height	450mm & 550mm

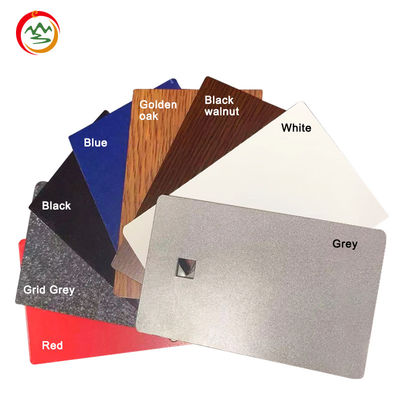

Normal Color	Porcelain white, light gray,coffee color and stainless steel color, or any Ral color.
Rail & Fitting	Hot dip galvanized steel rail and galvanized bracket & hinges. Aluminum powder coated 2.8mm thick rail is also optional.
Sealing	With full sealed, weather resistance & well protection & soundproof.
Control	Automatic & remote controlled. Power rate: 110V/220V/380V
Feature for door motorized system	Route memorable, door self locking when power cut off, self-checking up, non hand nipping, safety operation.

Product details

Details Images

Side hung motor

MODEL	600N	800N	1000N	1200N
Voltage range/rated frequency	220~240V AC, 50/60HZ
Rated power	200W	235W	245W	260W
Maximum lifting force	600N	800N	1000N	1200N
Door opening speed	180mm/s
Lamp type	LED
Lighting time	3 minutes
Coding type	Rolling code
Radio frequency	433.92 MHZ or other requirements
Ambient temperature	-20°C~+40°C
Relative humidity	<90%
Applicable door area	10m²	12m²	14m²	16m²

Industrial sliding doors

Industrial sliding doors are lifted by multiple blocks, spring balance system, motor drive, with high degree of durability, wind pressure resistance and good heat preservation performance, durable, easy to operate, safe and optional. It is suitable for high-end factories, warehouses and buildings with large door and roof space. Compared with other types of doors, industrial sliding doors have different requirements for heat insulation, sound insulation, heat preservation, sealing, rust prevention, color, daylighting, fire protection, working mode, and automation. They have higher quality requirements and safety precautions. More stringent requirements. Sound insulation: K=0.4-0.5W/㎡C, heat insulation: RM value=26.5Dba, door panel adopts electrostatic powder spraying process, which is characterized by strong durability, anti-aging, anti-corrosion, non-fading, easy maintenance, and long-lasting as new . The thickness is from 40mm to 100mm, depending on the customer's requirements for edge functions. Control method: remote control, button, geomagnetism, radar, etc.

Company Profile

Why Choose Us

packing shipping and payment

FAQ

1. How can I buy the doors?

If you want buy sectional industrial door, we need know your door open size, than contact us for doors drawing and price.

2. What's our payment terms?

T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.

3. What's the delivery time?

Within 15-35 days after we confirm you requirement.

4.I can't install the doors.

No worries, it's very easy, we have installation vedio, manual books and technician on line supports. If need we go to the work site to installation, please contact sales for the service.

5. I never imported from China.

No worries. Our sales are rich experience, they will help you with imported step by step.
