Industrial Automatic Overhead Steel Thermal Insulated Vertical Lifting Sectional Door for Warehouse and Loading Docks

Name: Industrial Automatic Overhead Steel Thermal Insulated Vertical Lifting Sectional Door for Warehouse and Loading Docks
Brand: Hubei Huanshan Intelligent Technology Co., Ltd.
Availability: InStock

Large Image : Industrial Automatic Overhead Steel Thermal Insulated Vertical Lifting Sectional Door for Warehouse and Loading Docks

Product Details:

Contact Now

Detailed Product Description

Place Of Origin:	China	Brand Name:	HS
Model Number:	SD-1	Door Material:	Steel
Warranty:	1 Year	Feature:	Windproof, Hear Insukation, High Safety
Surface Finishing:	Finished	Opening Method:	Electric Side Opening
Door Type:	Polymer	After-sale Service:	Online Technical Support
Main Material:	Polymer	Project Solution Capability:	Graphic Design
Application:	Hotel, Garage, Warehouse, Factory	Design Style:	Modern
Product Name:	Sectional Industrial Door	Material:	Galvanize Steel, Aluminum, Stainless Steel

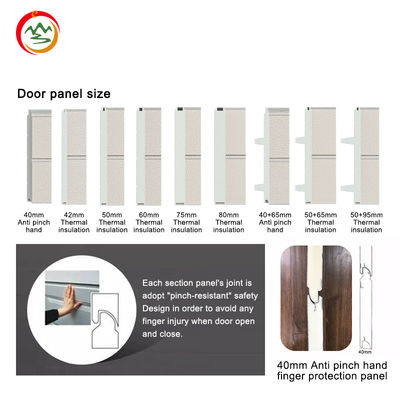

Color:	Details Page	Panel Thickness:	40mm,42mm,50mm,60mm,75mm,80mm,40+65mm,50+65mm,50+95mm
Height:	450mm, 500mm, 550mm	Width:	Maximum 13000mm
Control:	Automatic With Remote Cotroled	Handware:	With All Hardware
Open Style:	Automatic

Products Description

Material options	1. 304 STAINLESS STEEL 0.326mm or 0.426mm 2. Steel material door panel with polyethene foam filled 3. Galvanized steel tracks and accessories, customizable colors
Door panel height	450mm、500mm、 550mm

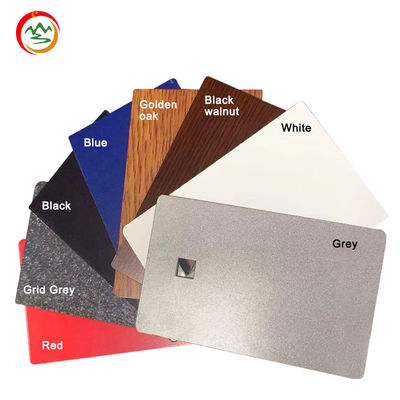

Normal Color	White, black, silver gray, dark gray, sky blue, fire blue, yellow, red, gold oak, black walnut, with a large quantity and customizable colors
Rail & Fitting	Hot dip galvanized steel rail and galvanized bracket & hinges. Aluminum powder coated 2.8mm thick rail is also optional.
Sealing	With full sealed, weather resistance & well protection & soundproof.
Control	Automatic & remote controlled. Power rate: 110V/220V/380V
Feature for door motorized system	Route memorable, door self locking when power cut off, self-checking up, non hand nipping, safety operation.

Product details

Details Images

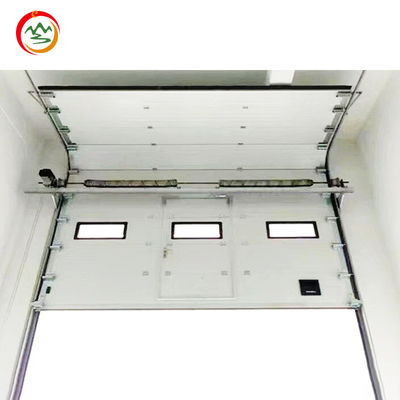

Side hung motor

MODEL	600N	800N	1000N	1200N
Voltage range/rated frequency	220~240V AC, 50/60HZ
Rated power	200W	235W	245W	260W
Maximum lifting force	600N	800N	1000N	1200N
Door opening speed	180mm/s
Lamp type	LED
Lighting time	3 minutes
Coding type	Rolling code
Radio frequency	433.92 MHZ or other requirements
Ambient temperature	-20°C~+40°C
Relative humidity	<90%
Applicable door area	10m²	12m²	14m²	16m²

Industrial Overhead Doors

Industrial Overhead doors are lifted by multiple blocks, spring balance system, motor drive, with high degree of durability, wind pressure resistance and good heat preservation performance, durable, easy to operate, safe and optional. It is suitable for high-end factories, warehouses and buildings with large door and roof space. Compared with other types of doors, industrial sliding doors have different requirements for heat insulation, sound insulation, heat preservation, sealing, rust prevention, color, daylighting, fire protection, working mode, and automation. They have higher quality requirements and safety precautions. More stringent requirements. Sound insulation: K=0.4-0.5W/㎡C, heat insulation: RM value=26.5Dba, door panel adopts electrostatic powder spraying process, which is characterized by strong durability, anti-aging, anti-corrosion, non-fading, easy maintenance, and long-lasting as new . The thickness is from 40mm to 100mm, depending on the customer's requirements for edge functions. Control method: remote control, button, geomagnetism, radar, etc.

Company Profile

Why Choose Us

packing shipping and payment

FAQ

1. How can I buy the doors?

If you want buy sectional industrial door, we need know your door open size, than contact us for doors drawing and price.

2. What's our payment terms?

T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.

3. What's the delivery time?

Within 15-35 days after we confirm you requirement.

4.I can't install the doors.

No worries, it's very easy, we have installation vedio, manual books and technician on line supports. If need we go to the work site to installation, please contact sales for the service.

5. I never imported from China.

No worries. Our sales are rich experience, they will help you with imported step by step.
