Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door

Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door

Detailed Product Description
Place Of Origin: China Brand Name: Hbhs
Model Number: GD-01 Door Material: Steel
Warranty: 1 Year Material: Polymer, Galvanize Steel, Aluminum, Stainless Steel
Feature: Windproof, Hear Insukation, High Safety Surface Finishing: Finished
Opening Method: Electric Side Opening Door Type: Polymer
After-sale Service: Online Technical Support Main Material: Polymer
Project Solution Capability: Graphic Design Application: Hotel, Garage, Warehouse, Factory
Design Style: Modern Product Name: Sectional Industrial Door

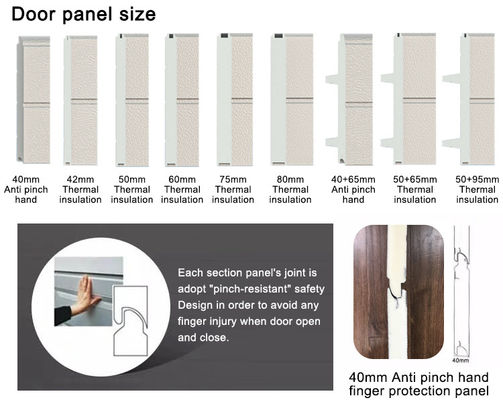

Color: Customized Panel Thickness: 40mm,42mm,50mm,60mm,75mm,80mm,40+65mm,50+65mm,50+95mm
Height: 435mm, 485mm, 535mm Width: Maximum 6500mm
Control: Automatic With Remote Cotroled Handware: With All Handware
Open Style: Automatic

Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 0
Products Description
Material options
1. 304 STAINLESS STEEL 0.326mm or 0.426mm
2. Steel material door panel with polyethene foam filled
3. Galvanized steel tracks and accessories, customizable colors
Door panel height
450mm、500mm、 550mm

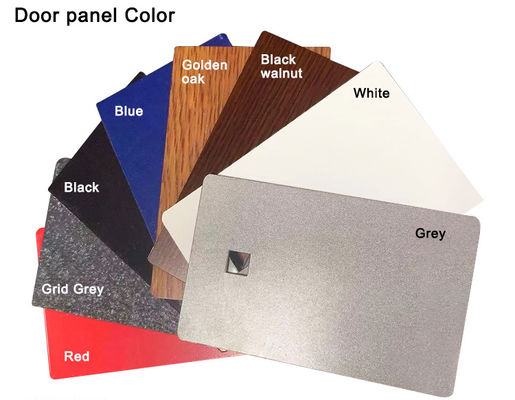

Normal Color
White, black, silver gray, dark gray, sky blue, fire blue, yellow, red, gold oak, black walnut, with a large quantity and customizable colors
Rail & Fitting
Hot dip galvanized steel rail and galvanized bracket & hinges.
Aluminum powder coated 2.8mm thick rail is also optional.
Sealing
With full sealed, weather resistance & well protection & soundproof.
Control
Automatic & remote controlled.
Power rate: 110V/220V/380V
Feature for door motorized system
Route memorable, door self locking when power cut off, self-checking up, non hand nipping, safety operation.
Product details
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 2
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 4
Details Images
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 6
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 8
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 10
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 12
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 14
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 16
Side hung motor
MODEL
600N
800N
1000N
1200N
Voltage range/rated frequency
220~240V AC, 50/60HZ
Rated power
200W
235W
245W
260W
Maximum lifting force
600N
800N
1000N
1200N
Door opening speed
180mm/s
Lamp type
LED
Lighting time
3 minutes
Coding type
Rolling code
Radio frequency
433.92 MHZ or other requirements
Ambient temperature
-20°C~+40°C
Relative humidity
<90%
Applicable door area
10m²
12m²
14m²
16m²
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 18
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 20
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 22
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 24

Industrial Overhead Doors

Industrial Overhead doors are lifted by multiple blocks, spring balance system, motor drive, with high degree of durability, wind pressure resistance and good heat preservation performance, durable, easy to operate, safe and optional. It is suitable for high-end factories, warehouses and buildings with large door and roof space. Compared with other types of doors, industrial sliding doors have different requirements for heat insulation, sound insulation, heat preservation, sealing, rust prevention, color, daylighting, fire protection, working mode, and automation. They have higher quality requirements and safety precautions. More stringent requirements. Sound insulation: K=0.4-0.5W/㎡C, heat insulation: RM value=26.5Dba, door panel adopts electrostatic powder spraying process, which is characterized by strong durability, anti-aging, anti-corrosion, non-fading, easy maintenance, and long-lasting as new . The thickness is from 40mm to 100mm, depending on the customer's requirements for edge functions. Control method: remote control, button, geomagnetism, radar, etc.
Company Profile
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 26
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 28
Why Choose Us
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 30
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 32
packing shipping and payment
Wholesale Vertical Sectional Overhead Industrial Automatic Door Industrial Sliding Door Tracks Garage Automatic Lifting Door 34
FAQ
1. How can I buy the doors?
If you want buy sectional industrial door, we need know your door open size, than contact us for doors drawing and price.

2. What's our payment terms?
T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.

3. What's the delivery time?
Within 15-35 days after we confirm you requirement.

4.I can't install the doors.
No worries, it's very easy, we have installation vedio, manual books and technician on line supports. If need we go to the work site to installation, please contact sales for the service.

5. I never imported from China.
No worries. Our sales are rich experience, they will help you with imported step by step.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
